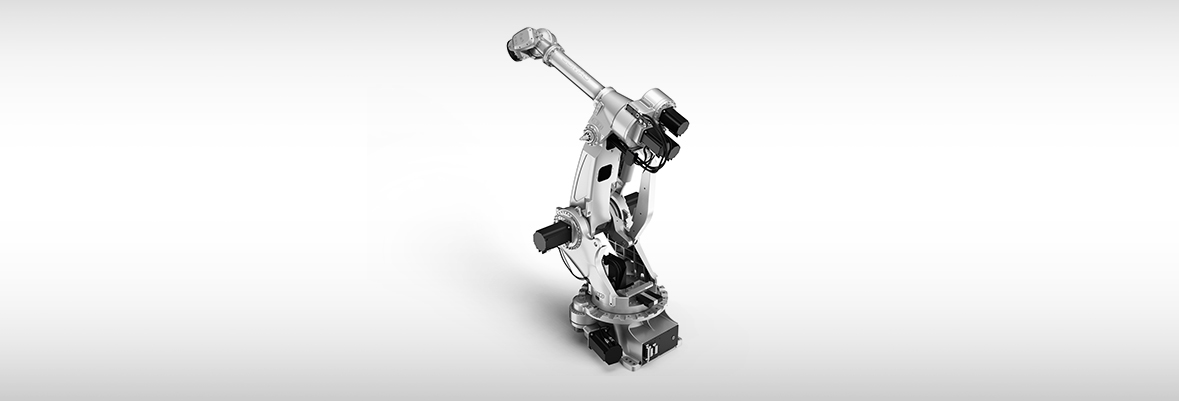

NJ-370-3.0
When Performance Matters
We deliver the power to drive your automation while ensuring energy savings, costs reduction and higher productivity. Need we say more?
Technical specifications NJ-370-3.0
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 370 |
| Additional load on forearm (Kg) | 50 |
| Maximum horizontal reach (mm) | 2997 |
| Torque on axis 4 (Nm) | 2109 |
| Torque on axis 5 (Nm) | 2109 |
| Torque on axis 6 (Nm) | 1569 |
| Stroke (Speed) on Axis 1 | +/- 180° (85°/s) |
| Stroke (Speed) on Axis 2 | +75° / – 60° (85°/s) |
| Stroke (Speed) on Axis 3 | -10° / – 220° (85°/s) |
| Stroke (Speed) on Axis 4 | +/- 2700° (90°/s) |
| Stroke (Speed) on Axis 5 | +/- 125° (90°/s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (120°/s) |
| Repeatability (mm) | 0.15 |
| Tool coupling flange | ISO 9409 – 1 – 200 – 6 – M12 |
| Robot weight (Kg) | 2450 |
| Protection class | IP65 / IP67 |
| Mounting position | Floor |
| Operating Areas A (mm) | 3680 |
| Operating Areas B (mm) | 2997 |
| Operating Areas C (mm) | 3195 |
| Operating Areas D (mm) | 433 |
| Operating Areas E (mm) | -118 |
What can do
- Handling
- Assembly
- Machine Tending
- Handling / Packaging
- Measuring Testing
- Polishing Deburring
- Foundry
- Spot Welding
- Pallettizing
Works with
C5G
TP5
Auxiliary systems
Positioners
External Axes
Slides
