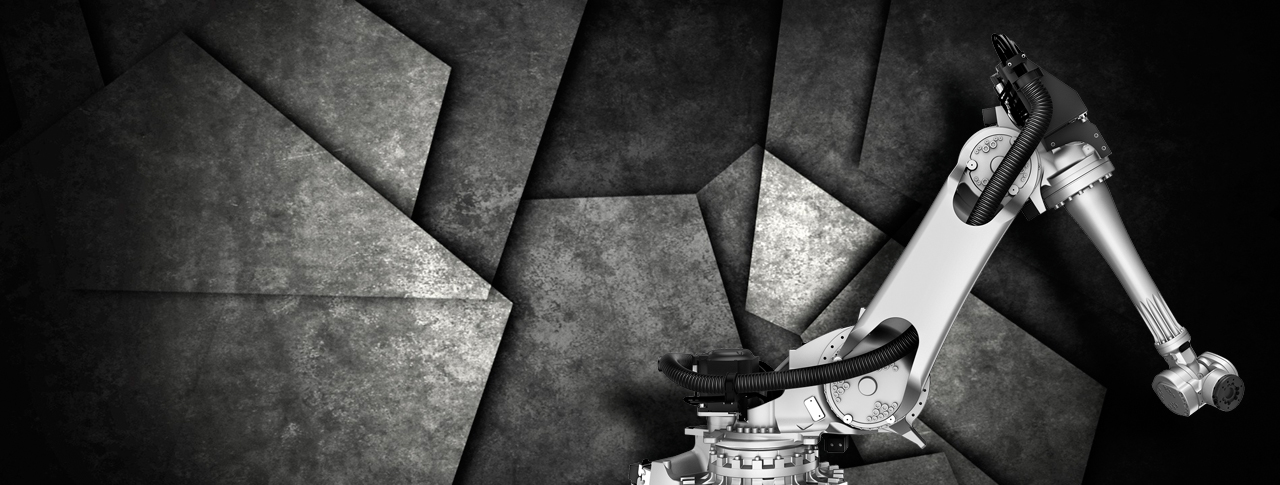

Comau Industrial Robot - NJ60

NJ-60-2.2

A Perfect Solution for Medium Payload Applications

NJ-60-2.2

You’re Good to Go

​With reduced weight and exceptional trajectory control, these robots deliver higher speeds and shorter cycle times. In other words, exactly what your applications demand.

Technical specifications NJ-60-2.2

Number of axes6
Maximum wrist payload (Kg)60
Additional load on forearm (Kg)20
Maximum horizontal reach (mm)2258
Torque on axis 4 (Nm)221
Torque on axis 5 (Nm)221
Torque on axis 6 (Nm)118
Stroke (Speed) on Axis 1+/- 180° (170°/s)
Stroke (Speed) on Axis 2-60° / +125° (150°/s)
Stroke (Speed) on Axis 30° / -165° (165°/s)
Stroke (Speed) on Axis 4+/- 2700° (265°/s)
Stroke (Speed) on Axis 5+/- 123° (250°/s)
Stroke (Speed) on Axis 6+/- 2700° (340°/s)
Repeatability (mm)0.06
Tool coupling flangeISO 9409 – 1 – A100
Robot weight (Kg)645
Protection classIP65 / IP67
Mounting positionFloor / Ceiling / Sloping (max 45°)
Operating Areas A (mm)2408
Operating Areas B (mm)2258
Operating Areas C (mm)1918
Operating Areas D (mm)686
Operating Areas E (mm)941

What can do

  • Assembly
  • Machine Tending
  • Dispensing
  • Cosmetic Sealing
  • Handling / Packaging
  • Measuring Testing
  • Polishing Deburring
  • Arc Welding
  • Plasma Cutting Water Jet
  • Press Brake Bending
  • Processing Machining
  • Wood-Glass Machining
  • Foundry
  • Laser Welding Cutting
  • Press to Press

Works with

C5G

TP5

Auxiliary systems

Positioners

External Axes
